Motor-driven spindles

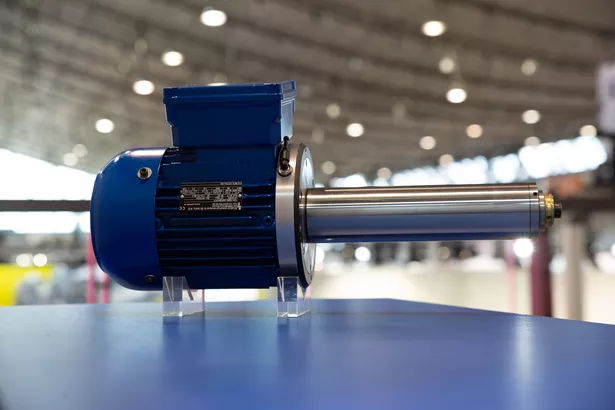

Powerful electrospindles with flanged motor. With HSK-C interface to pre-adjust tools. Also available with ER collet. Inexpensive solutions up to 36,000rpm. Low spindle weight.

Spindle drawings

40 mm housing

  • Tool adapter: Collet or HSK-C25
  • Speed: up to 48,000 rpm
  • Power: up to 1.8 kW

50 mm housing

  • Tool adapter: Collet ER16 or HSK-C32
  • Speed: up to 36,000 rpm
  • Power: up to 3.2 kW

60 mm housing

  • Tool adapter: HSK-C32
  • Speed: up to 24,000 rpm
  • Power: up to 3.2 kW

80 mm housing

  • Tool adapter: HSK-C50 or External Taper
  • Speed: up to 27,000 rpm
  • Power: up to 12.0 kW

100 mm housing

  • Tool adapter: HSK-C63 or External Taper
  • Speed: up to 18,000 rpm
  • Power: up to 18.0 kW
