Product Overview

The dimensions range are from housing diameter 35 mm to 250 mm. The interfaces are usually HSK-C, external taper and collets. Special designs on request. Here is an excerpt from the standard program.

Deuschle spindle

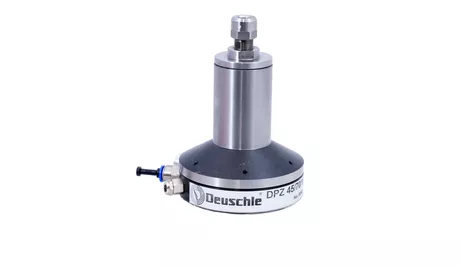

Air-Line

Special solutions in form and technical execution. Square body design, double tool interface, synchronous drive, asynchronous drive, automatic media transfer - according to customer requirements.

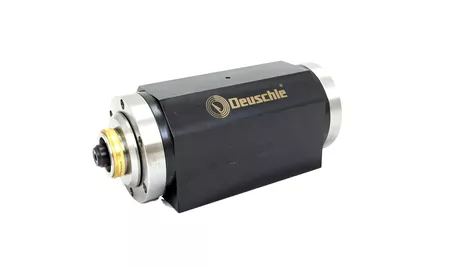

Advanced-Line

Special solutions in form and technical execution. Square body design, double tool interface, synchronous drive, asynchronous drive, automatic media transfer - according to customer requirements.

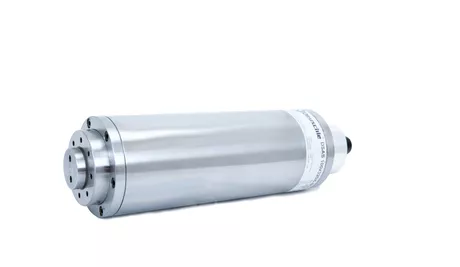

Dressing-Line

Powerful dressing spindles up to 1.7 kW for precise profiling and rotary dressing of grinding wheels. Available in diameters 35mm, 54mm, 72mm and 100mm.

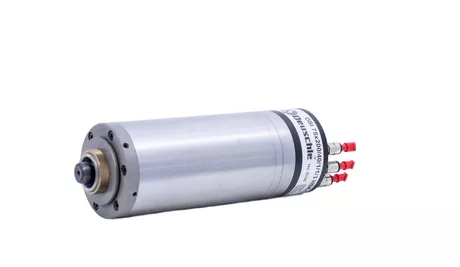

Grinding and milling spindles without interfering edge, cylindrical spindle housing. Media closures centrally axial or radial. From diameter 35mm to 213mm, versions up to 180,000rpm. Manual tool change.

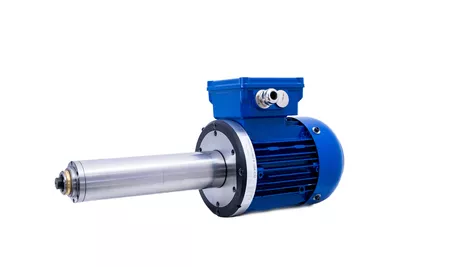

Power-Line

Powerful electrospindles with flanged motor. With HSK-C interface to pre-adjust tools. Also available with ER collet. Inexpensive solutions up to 36,000rpm. Low spindle weight.

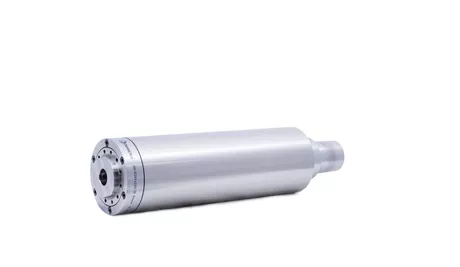

Economic-Line

Cost-effective solutions for connecting to external drive systems. HSK-C, taper, cylindrical and collet are available as tool interfaces.
